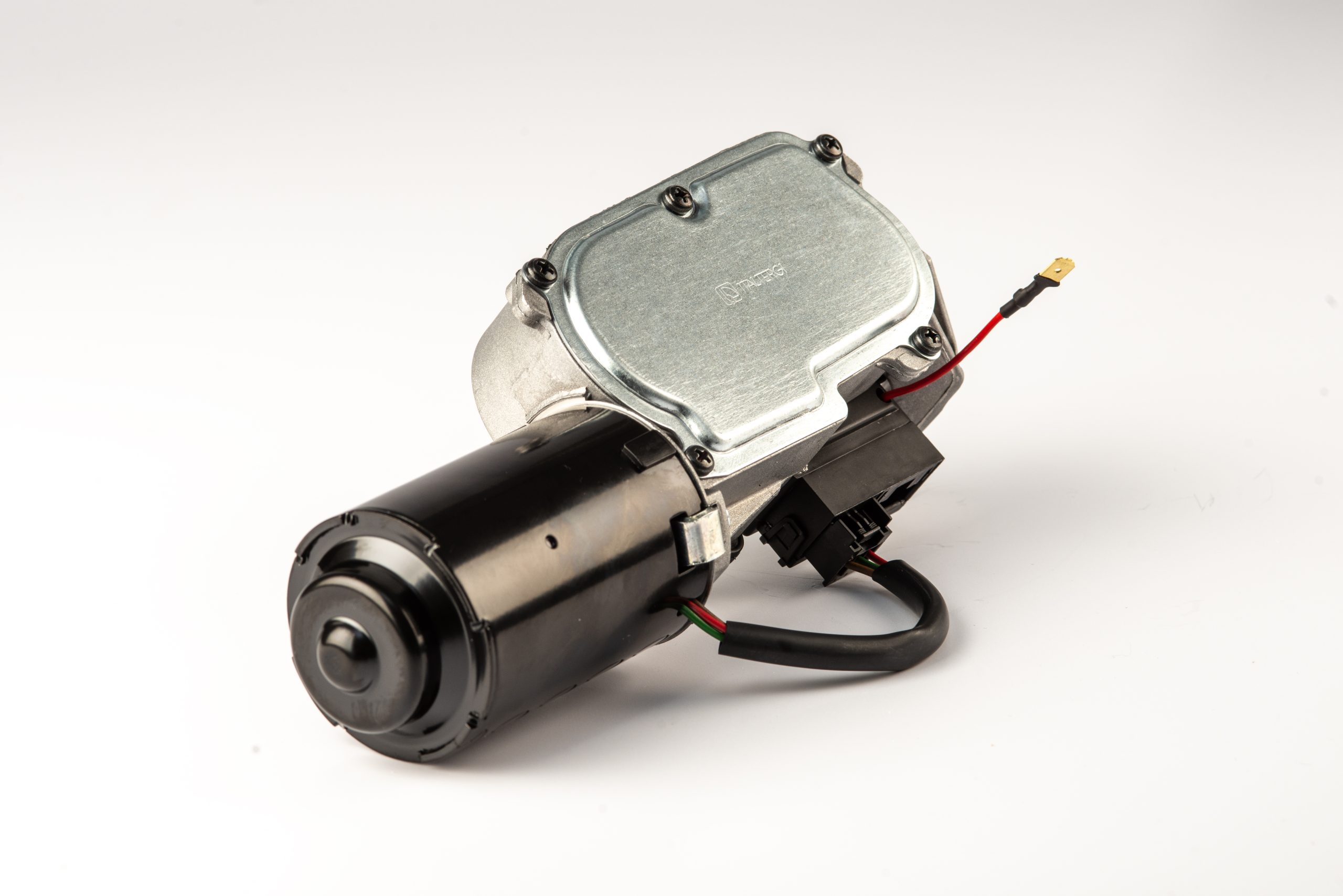

The ITG60 motor is equipped with an internal mechanism that allows it to cover cleaning angles between 60 and 152 degrees. It provides a starting torque of up to 26 Nm and a nominal torque of 4 Nm. Designed for flexibility, it works well in both single-arm and pantograph-arm applications. It also features an automatic parking function and is available in various configurations to meet different operational needs, 1 or 2 speed and 12 or 24V.
26 Nm
4 Nm
Arm 700 mm - Wiper blade 700 mm
Arm 700 mm - Wiper blade 700 mm
AN/AC
| Family | M46 | M44 | M45 | M43 |
| Nominal voltage (V) | 12 | 24 | 12 | 24 |
| Number of speed | 1 | 1 | 2 | 2 |
| Test voltage (V) | 13 | 26 | 13 | 26 |
| Nominal power (W) | 26 | 26 | 26/39 | 26/39 |
| Nominal current (A) | 2 | 1 | 2/3 | 1/1.5 |
| Maximum current (A) | 17 | 10 | 17/20 | 10/12 |
| Nominal Speed (rpm) | 40 | 38 | 40/58 | 38/60 |
| Nominal Torque (Nm) | 4 | 4 | 4/4 | 4/4 |
| Starting Torque (Nm) | 26 | 26 | 26/20 | 26/20 |
| Service mode | continuous | continuous | continuous | continuous |
| Protection | IP20/IP43 | IP20/IP43 | IP20/IP43 | IP20/IP43 |
| Weight (kg) | 1.4 | 1.4 | 1.4 | 1.4 |
| List |
| Values shown in the table refer to 90° wiping angle |
| Nominal values measured in standard conditions (tolerance ±10%) |
| Motors with automatic parking function |
| Industry |
|---|
| Automotive |
| Agriculture |
| Construction |
| Material Handling |
| Microcar - Utility vehicles |
| Motorcycle |
| Wiping angle [°] |
| 60 |
| 75 |
| 80 |
| 88 |
| 90 |
| 93 |
| 105 |
| 110 |
| 122 |
| 140 |
| 152 |
| EMC |
| EN 12895+A1:2019 Par. 5.2 |
| EN ISO 13766-1:2018 (Par. 4.5, 4.9.3, 4.9.4) |
| UNECE Regulation No. 10 rev 6 (20 Nov 2019) Annex 7, Annex 10 |
| Axle Lenght [mm] |
| 23 |
| 35 |
| 48 |
| 60 |
| 70 |
| 104 |
| Optional |
| Different types of electrical connections |
| IP Grade |
| IP20 - Standard/EPDM Seal |
| IP43 - Contacts sealing (glue) + Polehousing silicon cover |
