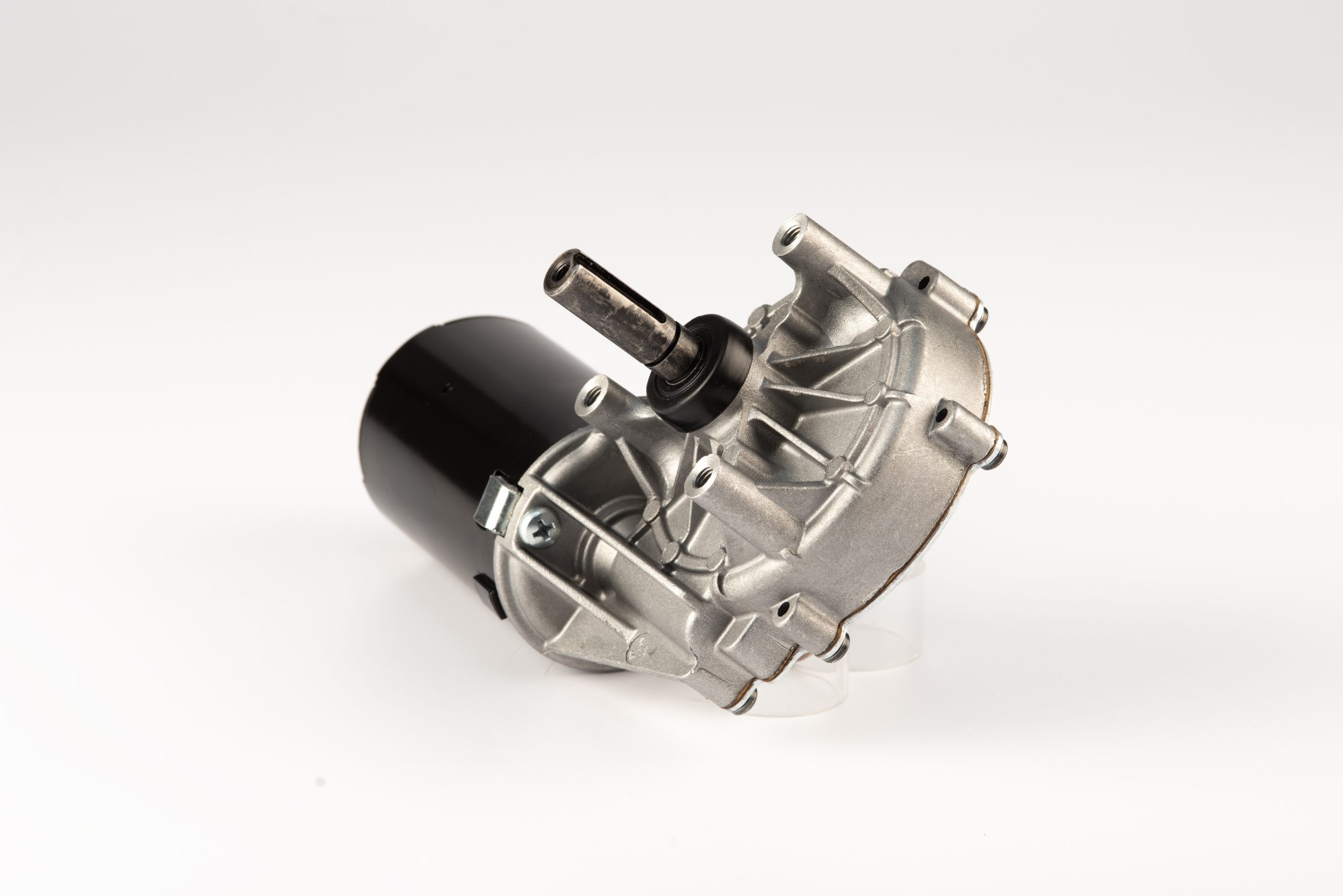

The ITG42 gear motor is a compact and versatile solution designed to meet the demands of industrial applications and automation. It delivers a starting torque of up to 45 Nm and a nominal torque of 5 Nm, ensuring reliable performance even under varying load conditions. Available in single or dual-speed configurations and compatible with 12V or 24V power supply, the ITG42 adapts to a wide range of operational needs. Additionally, a variety of output shafts can be selected for greater installation flexibility. Available in single or dual-speed configurations and compatible with 12V or 24V power supply, the ITG42 adapts to a wide range of operational needs. Additionally, a variety of output shafts can be selected for greater installation flexibility.
45 Nm
5 Nm
| Family | M53 | M51 | M54 | M52 |
| Nominal voltage (V) | 12 | 24 | 12 | 24 |
| Number of speed | 1 | 1 | 2 | 2 |
| Test voltage (V) | 13 | 26 | 13 | 26 |
| Nominal power (W) | 32 | 26 | 32.5/52 | 26/46.8 |
| Nominal current (A) | 2.5 | 1 | 2.5/4 | 1/1.8 |
| Maximum current (A) | 24 | 14 | 24/28 | 14/17 |
| Nominal Speed (rpm) | 30 | 27 | 30/47 | 27/42 |
| Nominal Torque (Nm) | 5 | 5 | 5/5 | 5/5 |
| Starting Torque (Nm) | 45 | 55 | 45/36 | 55/40 |
| Service mode | continuous | continuous | continuous | continuous |
| Protection | IP10/IP43/IP44 | IP10/IP43/IP44 | IP10/IP43/IP44 | IP10/IP43/IP44 |
| Weight (kg) | 1.3 | 1.3 | 1.3 | 1.3 |
| List |
| Nominal values measured in standard conditions (tolerance ±10%) |
| Motors with automatic parking function |
| Industry |
|---|
| Automotive |
| Agriculture |
| Construction |
| Industrial Application |
| Microcar - Utility vehicles |
| Railway |
| Material Handling |
| EMC |
| EN 12895+A1:2019 Par. 5.2 |
| EN ISO 13766-1:2018 (Par. 4.5, 4.9.3, 4.9.4) |
| EN ISO 14982:2009 |
| UNECE Regulation No. 10 rev 6 (20 Nov 2019) Annex 7, Annex 10 |
| Optional |
| Different types of electrical connections |
| HALL Sensor |
| A wide selection of windings for industrial applications |
| A wide selection of shafts for industrial applications |
| IP Grade |
| IP10 - Standard |
| IP43 - Contacts sealing (glue) + EPDM seal |
| IP44 - Contacts sealing (glue) + Polehousing silicon cover |
| IP44 - PVC bag |
