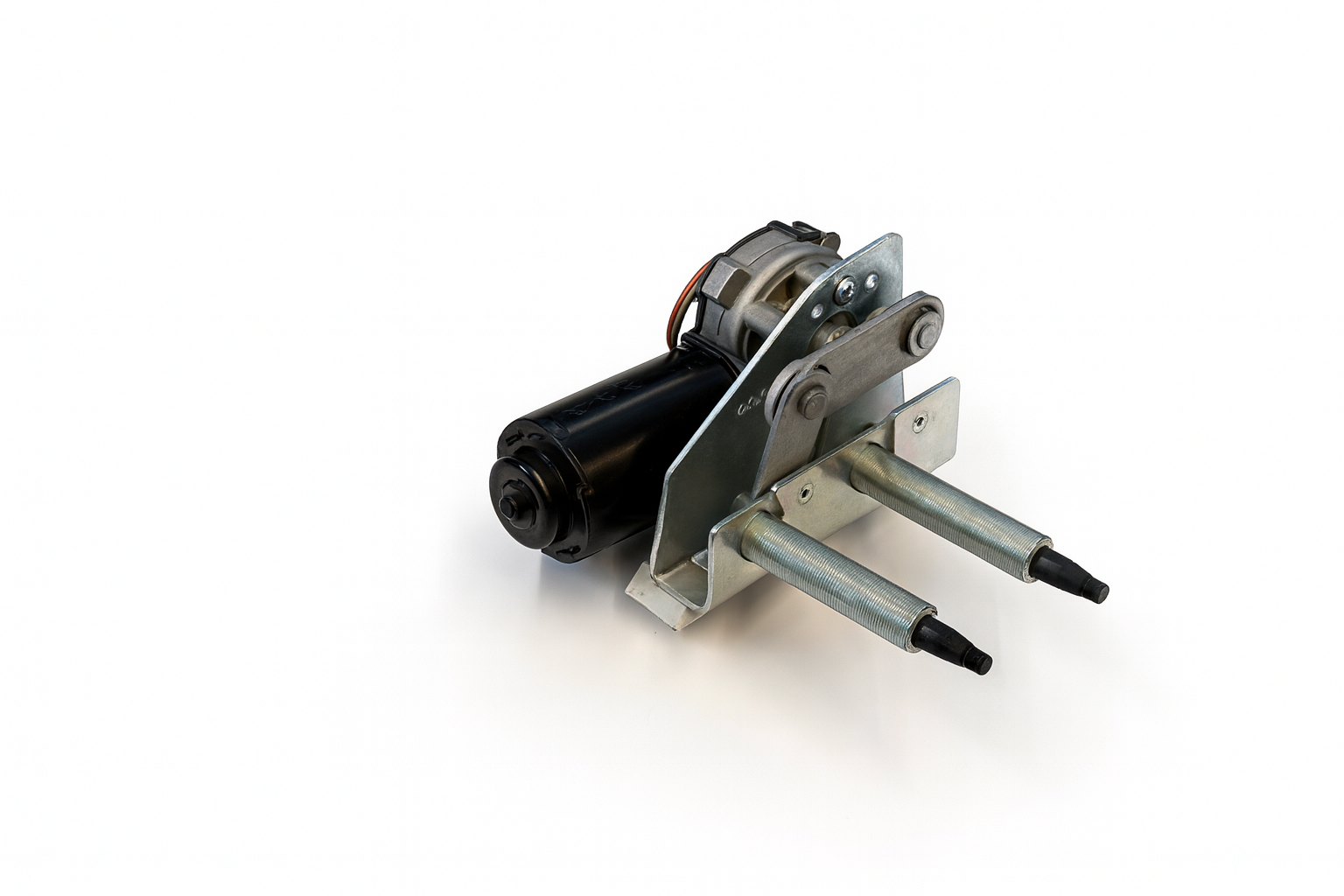

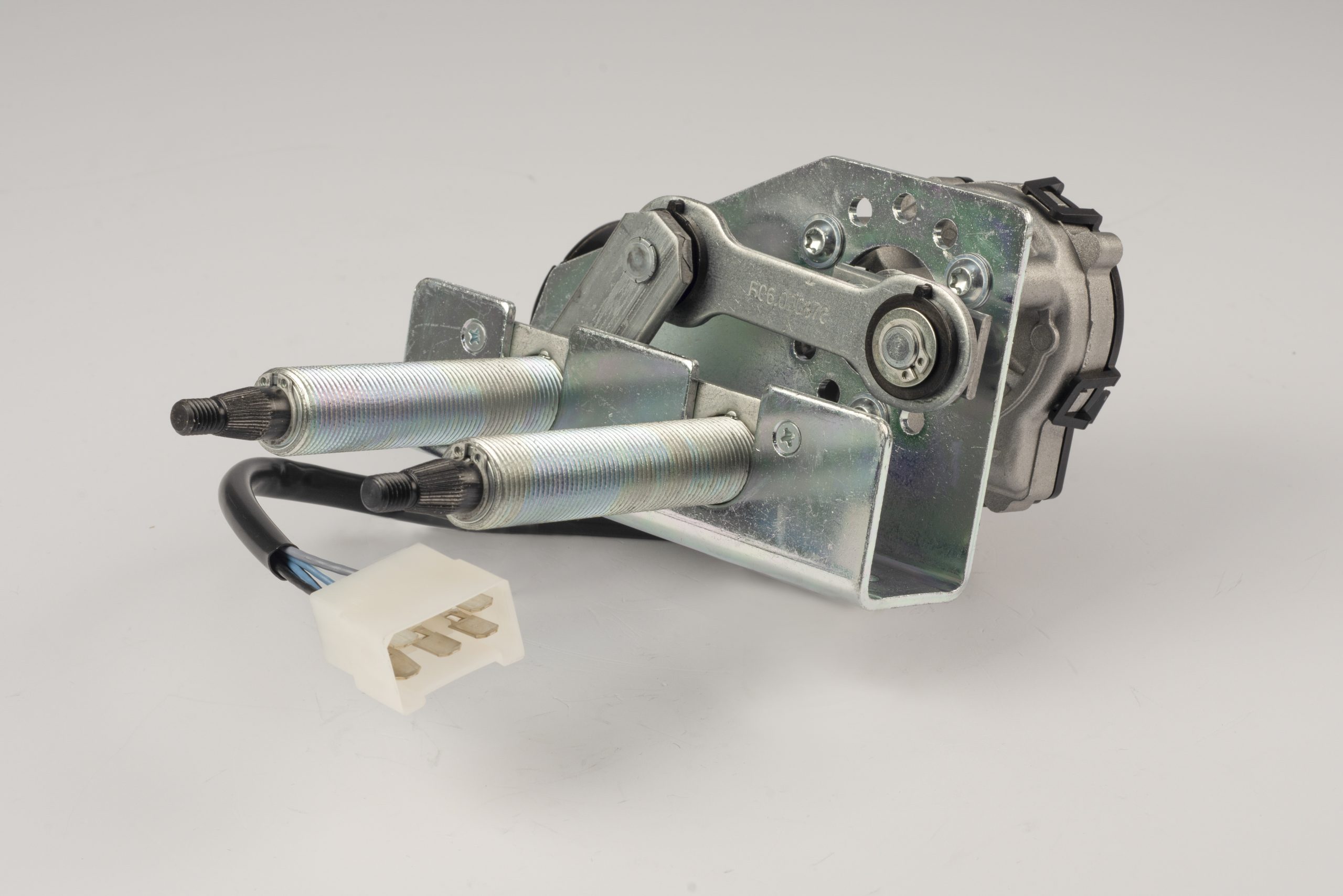

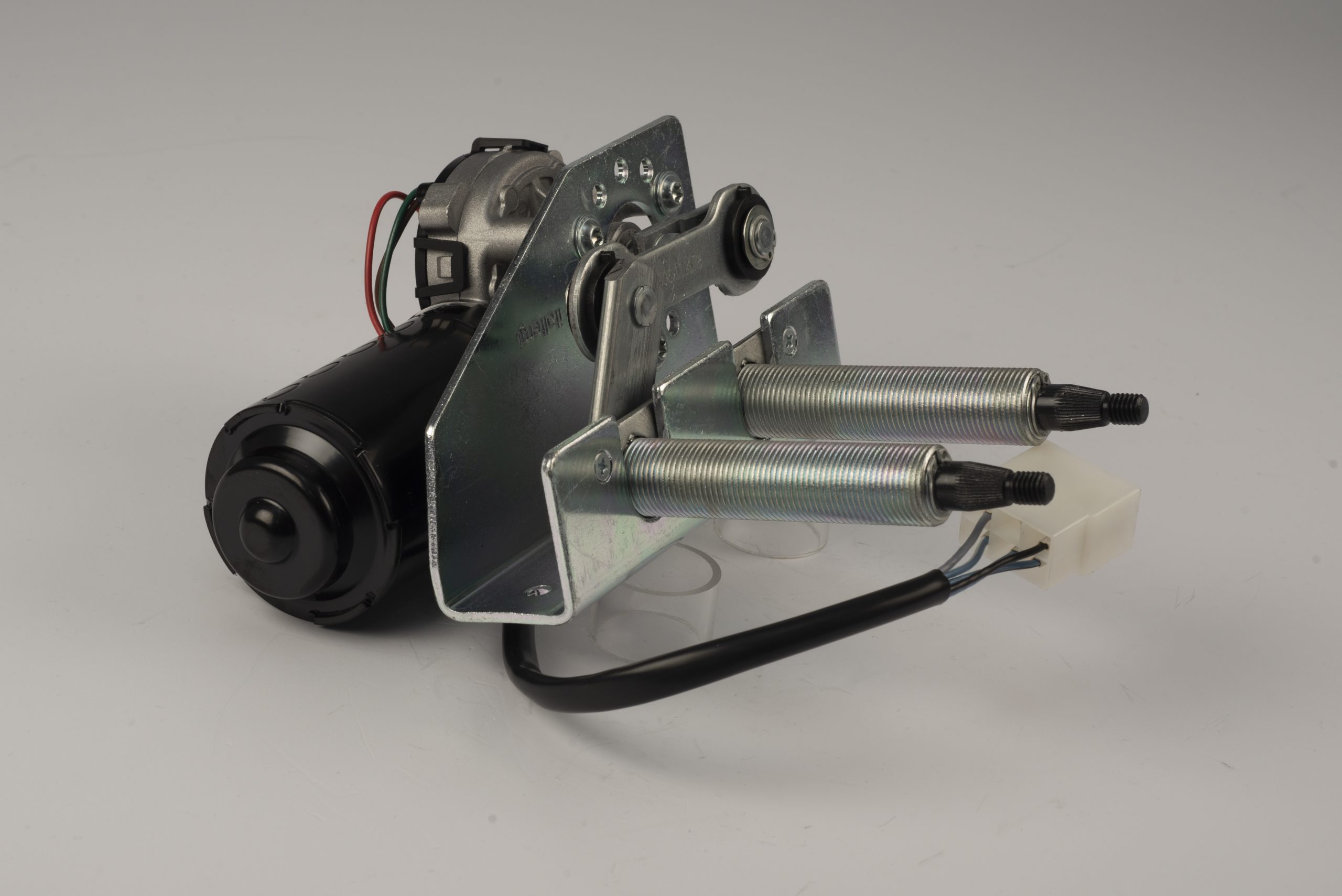

Compact wiper system ITG300 with ITG31 gearmotor, available in 12 V and 24 V, rated for a starting torque of 26 Nm. The oscillating output shaft, single or dual, supports both single-arm and pantograph configurations.
Compatible with bushings of various sizes for installation on different cabin types.
26 Nm
4 Nm
Arm 700 mm - Wiper blade 700 mm
Arm 700 mm - Wiper blade 700 mm
AN/AC
| Family | P73 (M49) | P73 (M47) | P73 (M50) | P73 (M48) |
| Nominal voltage (V) | 12 | 24 | 12 | 24 |
| Number of speed | 1 | 1 | 2 | 2 |
| Test voltage (V) | 13 | 26 | 13 | 26 |
| Nominal power (W) | 39 | 31 | 32.5/49.4 | 31/46.8 |
| Nominal current (A) | 2.5 | 1.2 | 2.5/3.8 | 1.2/1.8 |
| Maximum current (A) | 18 | 10 | 18/21 | 10/12 |
| Nominal Speed (rpm) | 37 | 37 | 37/57 | 37/58 |
| Nominal Torque (Nm) | 4 | 4 | 4 | 4 |
| Starting Torque (Nm) | 26 | 30 | 26/30 | 30/27 |
| Service mode | continuous | continuous | continuous | continuous |
| Protection | IP00/IP40 | IP00/IP40 | IP00/IP40 | IP00/IP40 |
| List |
| Nominal values measured in standard conditions (tolerance ±10%) |
| Motors with automatic parking function |
| Standard motors equipped with EMC filters and thermal switch |
| Industry |
|---|
| Agriculture |
| Construction |
| Material Handling |
| Microcar - Utility vehicles |
| Wiping angle [°] |
| 30 |
| 36 |
| 41 |
| 47 |
| 50 |
| 58 |
| 60 |
| 64 |
| 67 |
| 70 |
| 73 |
| 76 |
| 80 |
| 82 |
| 90 |
| 95 |
| 100 |
| EMC |
| UNECE Regulation No. 10 rev 6 (20 Nov 2019) Annex 7, Annex 10 |
| EN ISO 13766-1:2018 (Par. 4.5, 4.9.3, 4.9.4) |
| EN 12895+A1:2019 Par. 5.2 |
| Axle Lenght [mm] |
| 18 |
| 35 |
| 50 |
| 60 |
| 68 |
| 80 |
| 100 |
| 116 |
| Optional |
| Different types of electrical connections |
| HALL Sensor |
| IP Grade |
| IP00 - Standard |
| IP40 - Contacts sealing (glue) + EPDM seal |
| IP40 - Contacts sealing (glue) + Polehousing silicon cover |
