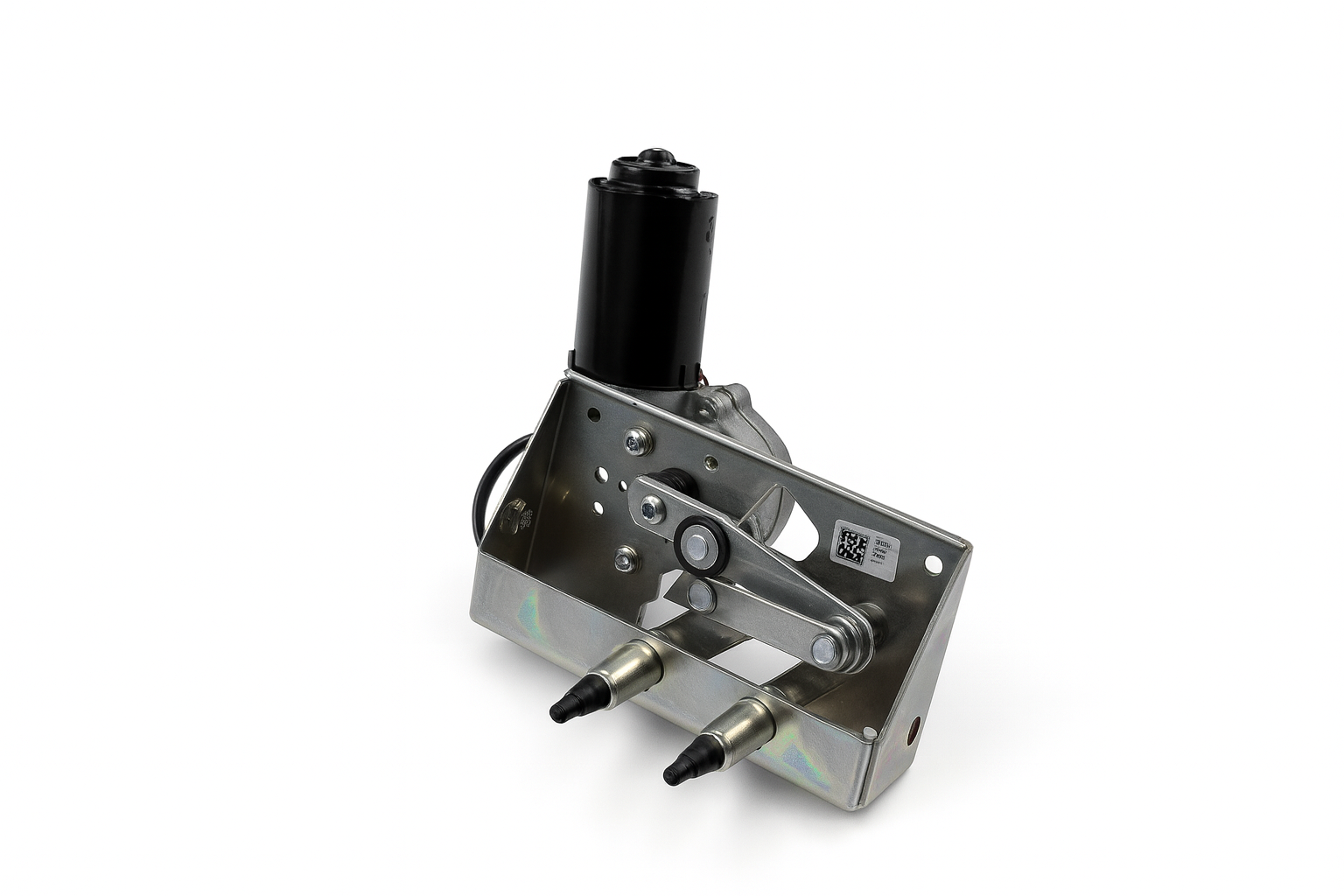

ITG500 wiper system with ITG42 motor, available in 12 V and 24 V, featuring a starting torque of 45 Nm. The oscillating output shaft, available in single or dual configuration, is suitable for single-arm or pantograph setups. The mechanism is compatible with bushings of various sizes, allowing installation on different types of cabins that require large-scale systems and high load capacities.
45 Nm
5 Nm
Arm 1000 mm - Wiper blade 1000 mm
Arm 800 mm - Wiper blade 1000 mm
AN/AC
| Family | P79 (M53) | P79 (M51) | P79 (M54) | P79 (M52) |
| Nominal voltage (V) | 12 | 24 | 12 | 24 |
| Number of speed | 1 | 1 | 2 | 2 |
| Test voltage (V) | 13 | 26 | 13 | 26 |
| Nominal power (W) | 32 | 26 | 32.5/52 | 26/46.8 |
| Nominal current (A) | 2.5 | 1 | 2.5/4 | 1/1.8 |
| Maximum current (A) | 24 | 14 | 24/28 | 14/17 |
| Nominal Speed (rpm) | 30 | 27 | 30/47 | 27/42 |
| Nominal Torque (Nm) | 5 | 5 | 5/5 | 5/5 |
| Starting Torque (Nm) | 45 | 55 | 45/36 | 55/40 |
| Service mode | continuous | continuous | continuous | continuous |
| Protection | IP10/IP43/IP44 | IP10/IP43/IP44 | IP10/IP43/IP44 | IP10/IP43/IP44 |
| List |
| Starting torque measured at 5 RPM |
| Nominal values measured in standard conditions (tolerance ±10%) |
| Motors with automatic parking function |
| Standard motors equipped with EMC filters and thermal switch |
| Industry |
|---|
| Agriculture |
| Construction |
| Material Handling |
| Railway |
| Wiping angle [°] |
| 29 |
| 36 |
| 41 |
| 45 |
| 51 |
| 56 |
| 60 |
| 67 |
| 70 |
| 74 |
| 80 |
| 84 |
| 86 |
| 89 |
| 92 |
| 100 |
| EMC |
| EN 12895+A1:2019 Par. 5.2 |
| UNECE Regulation No. 10 rev 6 (20 Nov 2019) Annex 7, Annex 10 |
| EN ISO 13766-1:2018 (Par. 4.5, 4.9.3, 4.9.4) |
| EN ISO 14982:2009 |
| Axle Lenght [mm] |
| 38 |
| 55 |
| 63.5 |
| 71.5 |
| 99.5 |
| Optional |
| Different types of electrical connections |
| HALL Sensor |
| A wide selection of windings for industrial applications |
| IP Grade |
| IP10 - Standard |
| IP43 - Contacts sealing (glue) + EPDM seal |
| IP44 - Contacts sealing (glue) + Polehousing silicon cover |
| IP44 - PVC bag |
