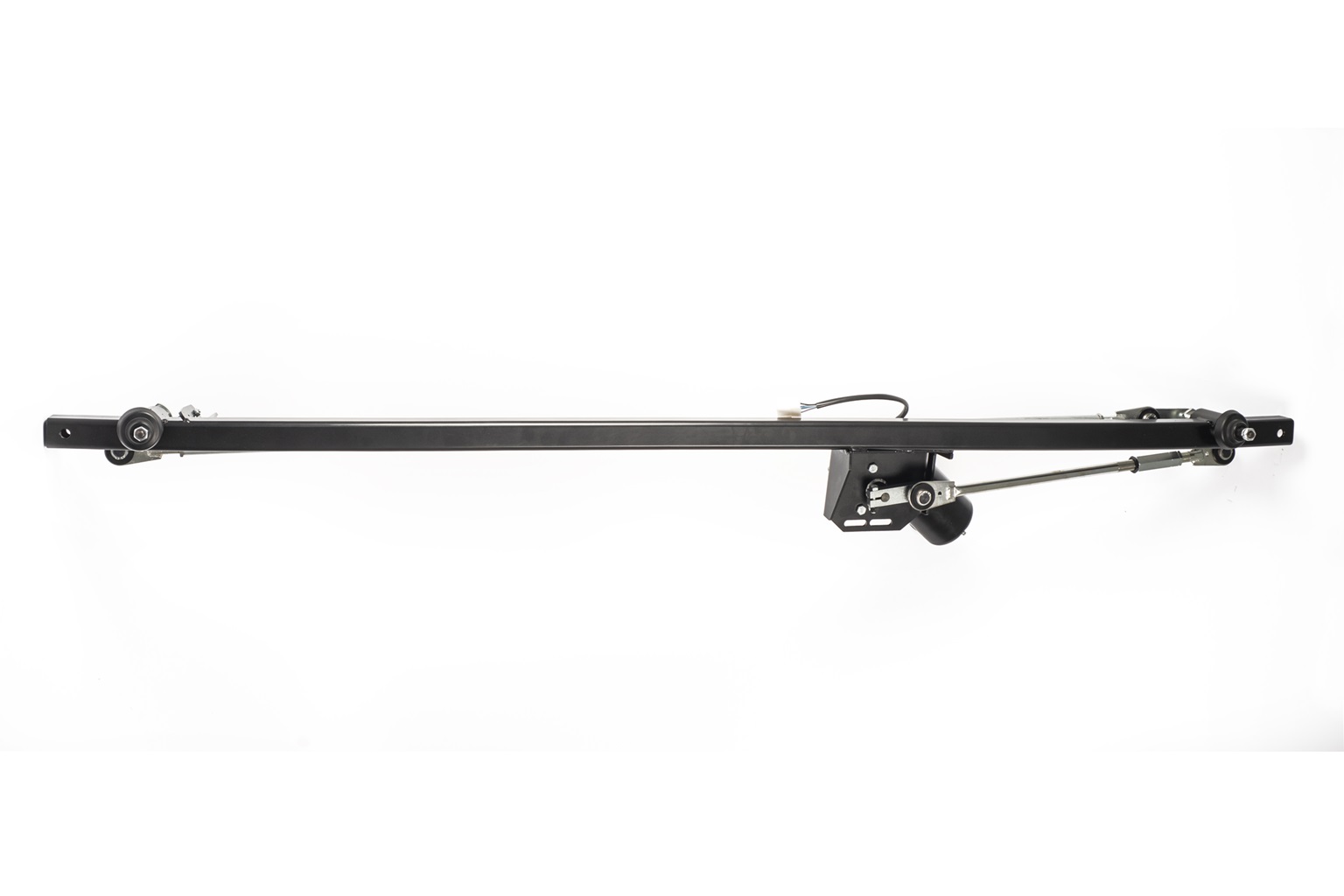

Heavy duty wiper system C51 with ITG100 motor, available in 24 V, with a starting torque of 120 Nm. The oscillating output shaft, available in single or multiple configurations, is suitable for single-arm, pantograph, or multiple single arms system mechanically linked with synchronized movement. The mechanism is compatible with bushings of various sizes, allowing installation on different types of cabins. A custom solution designed to meet space constraints within the vehicle.
120 Nm
15 Nm
Arm 1200 - Blade 1300 mm
Arm 1200 mm - Blade 1300 mm
AN/AC
| Family | C51 (M59) |
| Nominal voltage (V) | 24 |
| Number of speed | 1/2 |
| Test voltage (V) | 26 |
| Nominal power (W) | 72.8/104 |
| Nominal current (A) | 2.8/4 |
| Maximum current (A) | 22/25 |
| Nominal Speed (rpm) | 19/35 |
| Nominal Torque (Nm) | 15/10 |
| Starting Torque (Nm) | 120/90 |
| Service mode | continuous |
| Protection | IP44 |
| List |
| Heavy duty solution for large glass and extreme conditions |
| Designed for fast integration and full customization |
| Tailor-made design for superior visibility and safety |
| Optimized cleaning coverage, even in the toughest weather conditions |
| Heavy duty system with self-supporting crossbeam for high rigidity |
| Industry |
|---|
| Agriculture |
| Material Handling |
| Automotive |
| Railway |
| Special Vehicles |
| Bus |
| Construction |
| Leisure/Camper |
| Wiping angle [°] |
| CUSTOM |
| EMC |
| EN 12895+A1:2019 Par. 5.2 |
| EN ISO 13766-1:2018 (Par. 4.5, 4.9.3, 4.9.4) |
| EN ISO 14982:2009 |
| Axle Lenght [mm] |
| CUSTOM |
| Optional |
| Different types of electrical connections |
| A wide selection of windings for industrial applications |
| IP Grade |
| IP44 - Standard |
