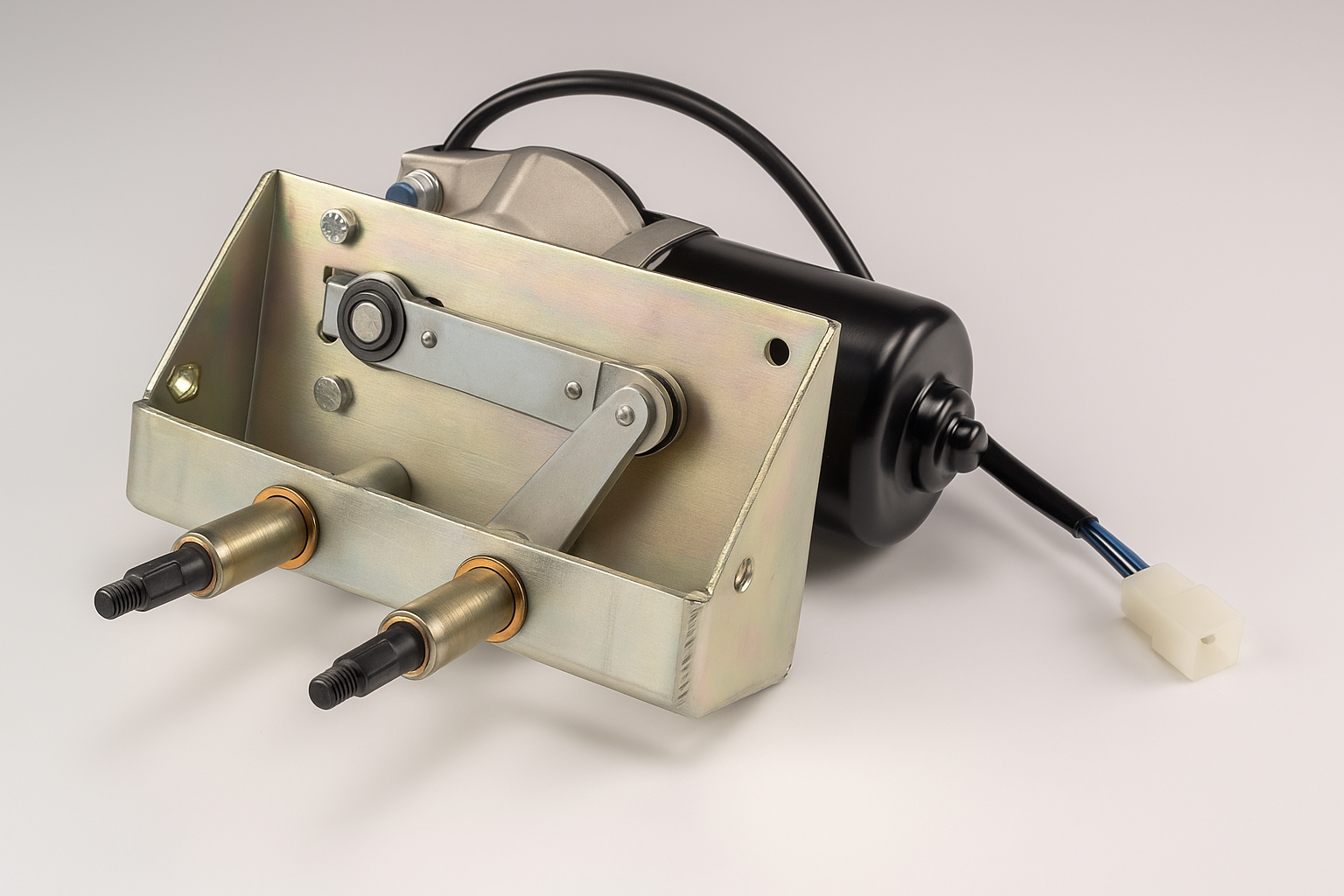

ITG500 wiper system with ITG90 motor, available in 12 V and 24 V, featuring a starting torque of 80 Nm. The oscillating output shaft, available in single or dual configuration, is suitable for single-arm or pantograph setups. The mechanism is compatible with bushings of various sizes, allowing installation on different types of cabins that require large-scale systems and high load capacities
80 Nm
12 Nm
Arm 1000 mm - Wiper blade 1200 mm
Arm 1000 mm - Wiper blade 1000 mm
AN/AC
| Family | P79 (M58) | P79 (M57) |
| Nominal voltage (V) | 12 | 24 |
| Number of speed | 1/2 | 1/2 |
| Test voltage (V) | 13 | 26 |
| Nominal power (W) | 91/91 | 81/86 |
| Nominal current (A) | 7/7 | 3/3.2 |
| Maximum current (A) | 38/46 | 25/29 |
| Nominal Speed (rpm) | 26/42 | 23/41 |
| Nominal Torque (Nm) | 12/6 | 12/6 |
| Starting Torque (Nm) | 58/48 | 80/70 |
| Service mode | continuous | continuous |
| Protection | IP10/IP44/IP45 | IP10/IP44/IP45 |
| List |
| Starting torque measured at 5 RPM |
| Nominal values measured in standard conditions (tolerance ±10%) |
| Motors with automatic parking function |
| Standard motors equipped with EMC filters and thermal switch |
| Industry |
|---|
| Agriculture |
| Construction |
| Material Handling |
| Railway |
| Wiping angle [°] |
| 29 |
| 36 |
| 41 |
| 45 |
| 51 |
| 56 |
| 60 |
| 67 |
| 70 |
| 74 |
| 80 |
| 84 |
| 86 |
| 89 |
| 92 |
| 100 |
| EMC |
| EN 12895+A1:2019 Par. 5.2 |
| EN ISO 13766-1:2018 (Par. 4.5, 4.9.3, 4.9.4) |
| EN ISO 14982:2009 |
| Axle Lenght [mm] |
| 38 |
| 55 |
| 63.5 |
| 71.5 |
| 99.5 |
| Optional |
| Different types of electrical connections |
| HALL Sensor |
| A wide selection of windings for industrial applications |
| IP Grade |
| IP10 - Standard |
| IP44 - Contacts sealing + Polehousing sealing taping |
| IP45 - Contacts sealing + PVC bag |
