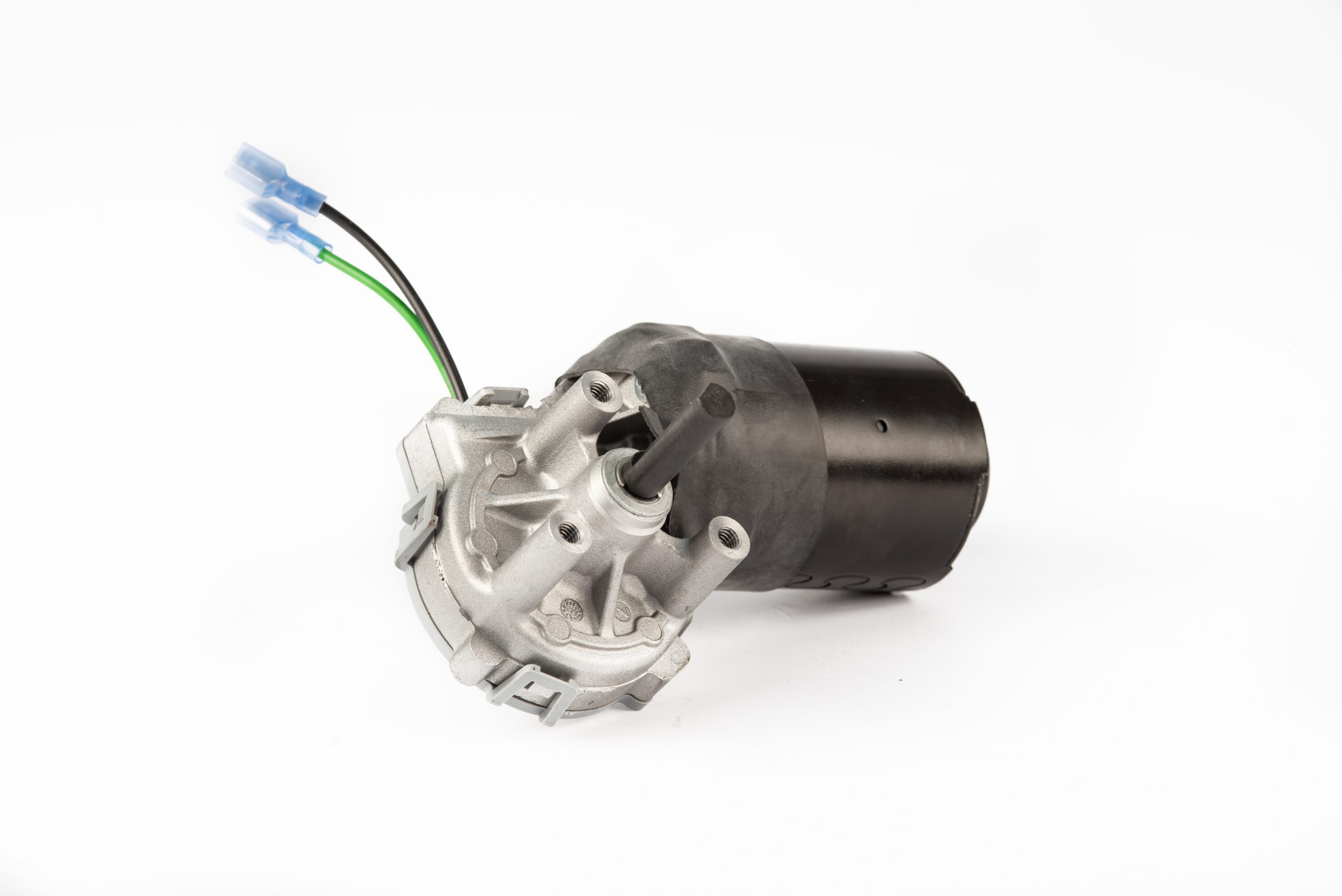

The ITG31 gear motor is a compact and versatile solution designed to meet the demands of industrial applications and automation. It delivers a starting torque of up to 26 Nm and a nominal torque of 4 Nm, ensuring reliable performance even under varying load conditions. Available in single or dual-speed configurations and compatible with 12V or 24V power supply, the ITG31 adapts to a wide range of operational needs. Additionally, a variety of output shafts can be selected for greater installation flexibility. Available in single or dual-speed configurations and compatible with 12V or 24V power supply, the ITG31 adapts to a wide range of operational needs. Additionally, a variety of output shafts can be selected for greater installation flexibility.
26 Nm
4 Nm
| Family | M49 | M47 | M50 | M48 |
| Nominal voltage (V) | 12 | 24 | 12 | 24 |
| Number of speed | 1 | 1 | 2 | 2 |
| Test voltage (V) | 13 | 26 | 13 | 26 |
| Nominal power (W) | 32.5 | 31 | 32.5/49.4 | 31/46.8 |
| Nominal current (A) | 2.5 | 1.2 | 2.5/3.8 | 1.2/1.8 |
| Maximum current (A) | 18 | 10 | 18/21 | 10/12 |
| Nominal Speed (rpm) | 37 | 37 | 37/57 | 37/58 |
| Nominal Torque (Nm) | 4 | 4 | 4 | 4 |
| Starting Torque (Nm) | 26 | 30 | 26/20 | 30/27 |
| Service mode | continuous | continuous | continuous | continuous |
| Protection | IP00/IP40 | IP00/IP40 | IP00/IP40 | IP00/IP40 |
| Weight (kg) | 1.1 | 1.1 | 1.1 | 1.1 |
| List |
| Nominal values measured in standard conditions (tolerance ±10%) |
| Motors with automatic parking function |
| Industry |
|---|
| Agriculture |
| Construction |
| Material Handling |
| Microcar - Utility vehicles |
| Camper |
| EMC |
| EN 12895+A1:2019 Par. 5.2 |
| EN ISO 13766-1:2018 (Par. 4.5, 4.9.3, 4.9.4) |
| UNECE Regulation No. 10 rev 6 (20 Nov 2019) Annex 7, Annex 10 |
| Optional |
| Different types of electrical connections |
| HALL Sensor |
| A wide selection of windings for industrial applications |
| A wide selection of shafts for industrial applications |
| IP Grade |
| IP00 - Standard |
| IP40 - Contacts sealing (glue) + EPDM seal |
